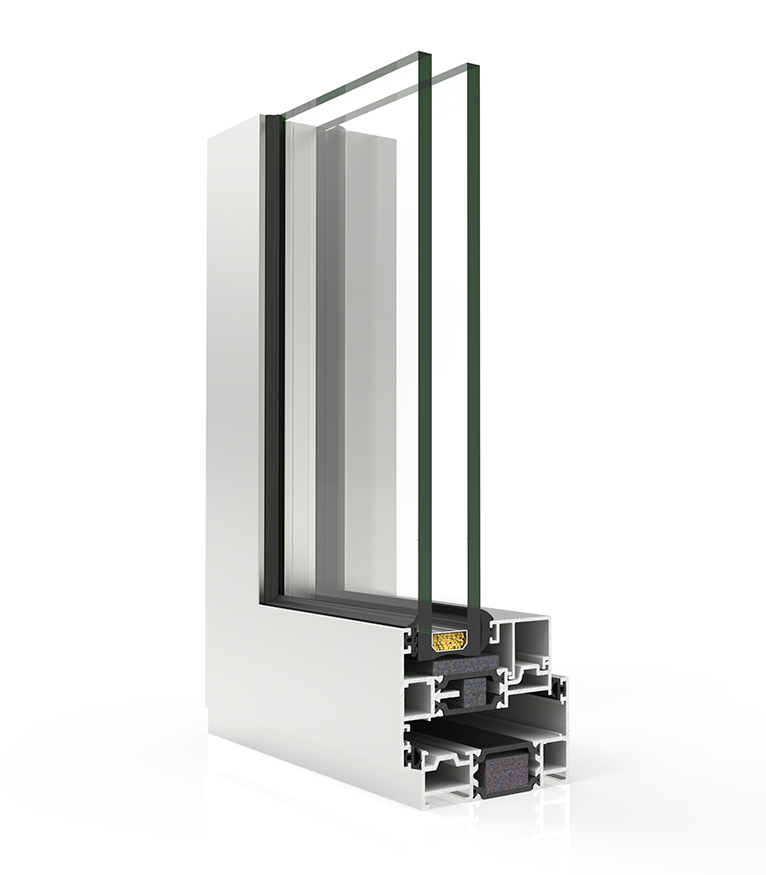

Thermally broken window that allows for both side hung and top hung outward openings. This solution, with a thermal break zone of 32 mm and a transmittance Uw from 1.0 W/ m²K, has the British security certification PAS 24, being especially suitable for this market.

Possibilities

• Security hardware
• Concealed hinges

Glazing

• 44 mm
• 23 mm

Opening options:

Outwards

• Side hung
• Top hung

Sightlines

• Frame 70 mm
• Sash 70 mm

Profile thickness

• Window 1.6 mm

Polyamide strip length

• 32 mm

Maximum sash dimensions

Slim sash (Side hung)

• Width (L) 950 mm
• Height (H) 1,300 mm

Slim sash (Top hung)

• Width (L) 1,200 mm
• Height (H) 1,300 mm

Heavy duty sash (Side hung)

• Width (L) 750 mm
• Height (H) 1,750 mm

Heavy duty sash (Top hung)

Width (L) 1,800 mm

Height (H) 1,800 mm

Maximum sash weight

• Side hung Slim sash: 35 kg
• Top hung Slim sash: 50 kg
• Side Hung Heavy duty sash: 42 kg
• Top Hung Heavy duty sash: 100 kg

Consult maximum weight and dimensions according to typologies.

Finishes

• Possibility of dual colour systems
• Colour powder coating (RAL, mottled and rough)
• Wood effect powder coating
• Anti-bacterial powder coating
• Anodised
