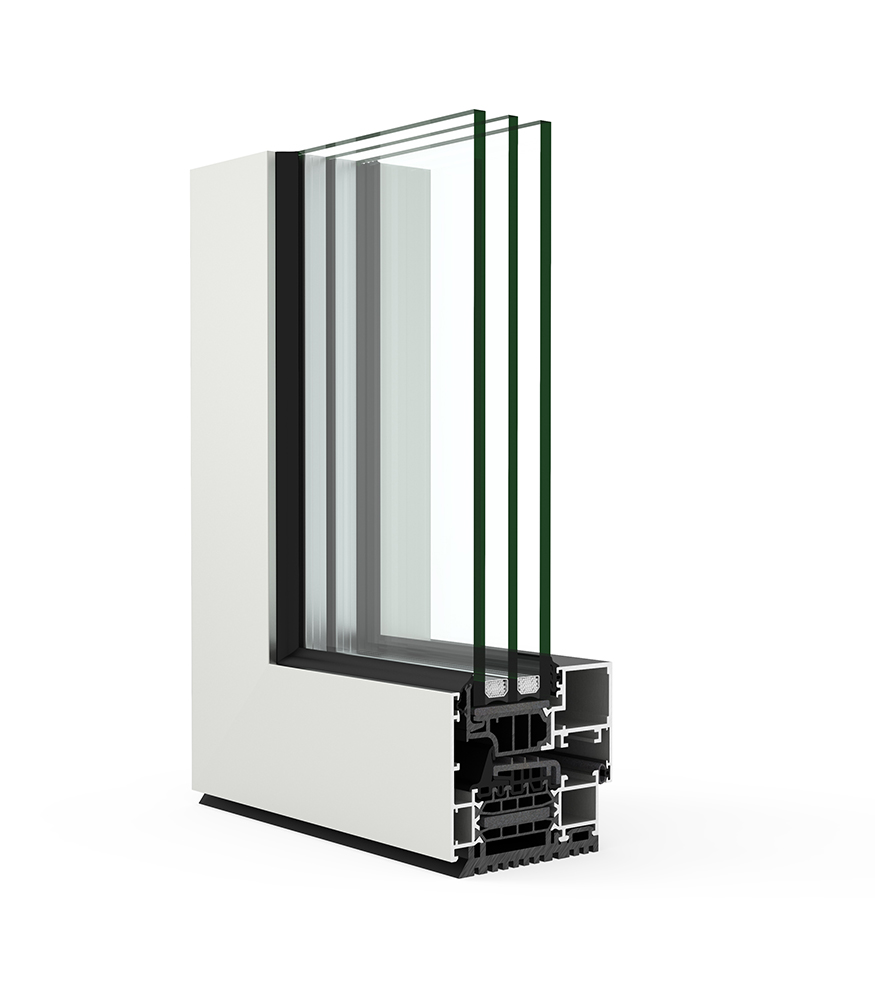

Elegant design with straight aesthetic in which the sash is concealed behind the frame, thus maximising the glazed surface and the entry of light. Added to all of this is the great thermal and acoustic performance prompted by the 45 mm thermal break and a glazing capacity of up to 51 mm that allows the installation of triple glazing.

Options

• Security hardware
• Concealed hinges
• Concealed drainage
• Concealed handle

Glazing

• 51 mm
• 36 mm

Opening possibilities

Inward opening

• Side hung
• Tilt & turn
• Tilt only
• Parallel Sliding

Sightlines

• Frame 80 mm
• Sash 80 mm

Profile thickness

• Window 1.9 mm

Polyamide strip length

• 45 mm

Maximum sash dimensions

Standard Solution

• Width (L) 1,300 mm
• Height (H) 2,400 mm

HD Hinges (Side Hung)

• Width (L) 1,200 mm
• Height (H) 3,500 mm

Maximum sash weight

• 160 kg

Consult maximum weight and dimensions according to typologies

Finishes

• Possibility of dual colour systems
• Colour powder coating (RAL, mottled and rough)
• Wood effect powder coating
• Anti-bacterial powder coating
• Anodised
